Augers & Drives

AUGERS & DRIVES

Features

Augers

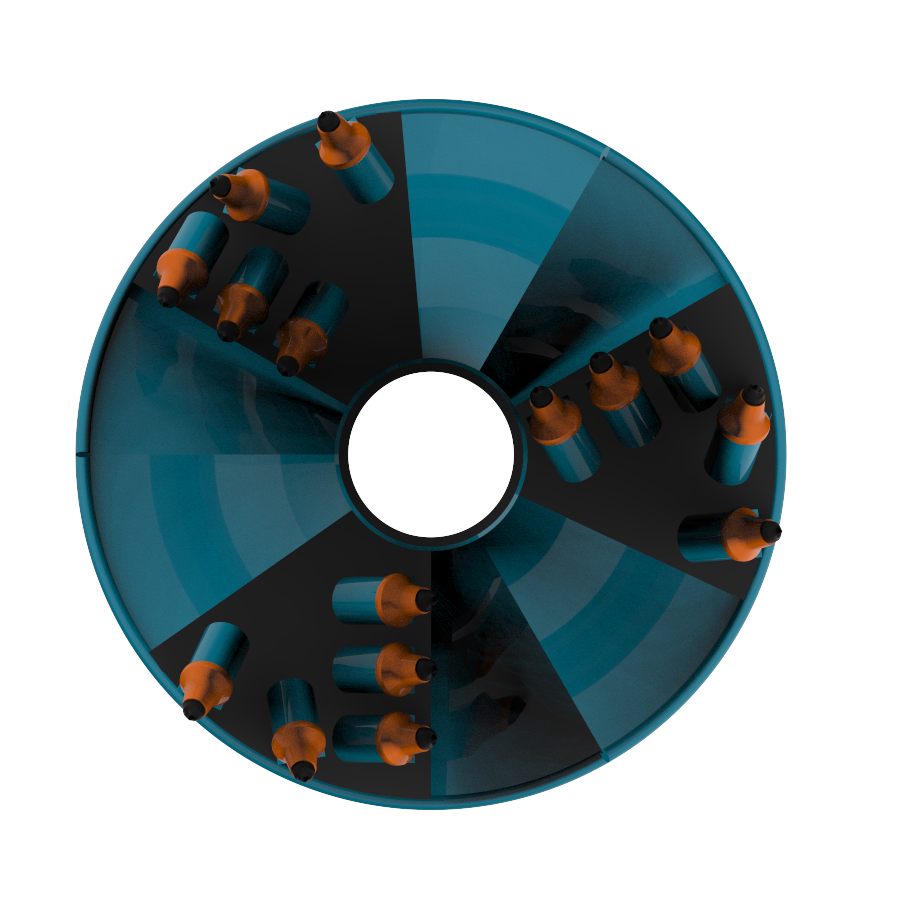

teeth placment

The design features 3 helical flues offset by 120 degrees which results in improved drilling performance and reduced tool wear.

The heavy duty flues also feature a hardox or bisalloy spine which further stiffens the structure and protects the flue edges from wear. It also serves as a wear indicator.

The heavy duty cutting tips are mounted on a carrier plate with pre-fabricated pockets which allow for correct postitioning of tips on individual lapels of the flues. This guarantees correct tip positioning for maximum drilling performance and minimum wear.

Auger Drives

auger drive

Specifications

Model AD3AD4AD5
Excavator range tonnes 5 - 1210 - 1615 - 25
Max. Oil Pressure MPa 4160112
Max. Flow at 50 bar l/min 353535
Rated Power kW 180180180
Max. flow at 250 bar l/min 120120120
Max. rotation speed rpm 180180125
Torque at 350 bar Nm 4,34058319720
Mass (without tool) kg 127168248
Max. Tool Diameter mm 5759001200
Power transmission direct couplngdirect couplngdirect couplng
mounting universal jointuniversal jointuniversal joint
seal position N/AN/AN/A
seal type N/AN/AN/A
Origin Czech RepublicCzech RepublicCzech Republic
